2012 GE OEC 9800 Plus Mobile C-Arm System with Vascular / ESP Package

Overview

The 2012 GE OEC 9800 Plus Mobile C-Arm with Vascular / ESP Package is the gold standard in intraoperative fluoroscopic imaging. Engineered for precision and clinical reliability, this late-model 2012 system features the upgraded Series 9800 ESP platform running Release 30 software and paired with a high-resolution dual 1k x 1k anti-glare monitor workstation. It delivers ultra-sharp image resolution, exceptional low-dose fluoroscopy, and advanced vascular roadmapping, making it ideal for hospital operating rooms, ambulatory surgical centers (ASCs), pain management clinics, vascular suites, and orthopedic practices.

Key Specifications & System Information

• Manufacturer: GE Healthcare / GE OEC Medical Systems, Inc. (Salt Lake City, UT)
• Model: OEC 9800 Plus (Series 9800 ESP)
• Date of Manufacture (DOM): March 2012
• Serial Number (SN): 89-3705
• Package Configuration: Vascular / ESP (Expanded Surgical Platform)

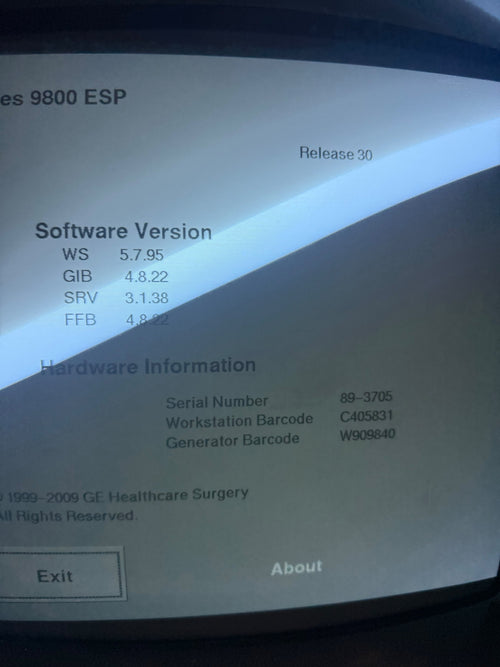

• Software Version: Release 30 (WS: 5.7.95 | GIB: 4.8.22 | SRV: 3.1.38 | FFB: 4.8.22)
• Workstation ID / Barcode: C405831 | Generator Barcode: W909840
• Image Intensifier: 9-inch Tri-Mode High-Contrast Image Intensifier

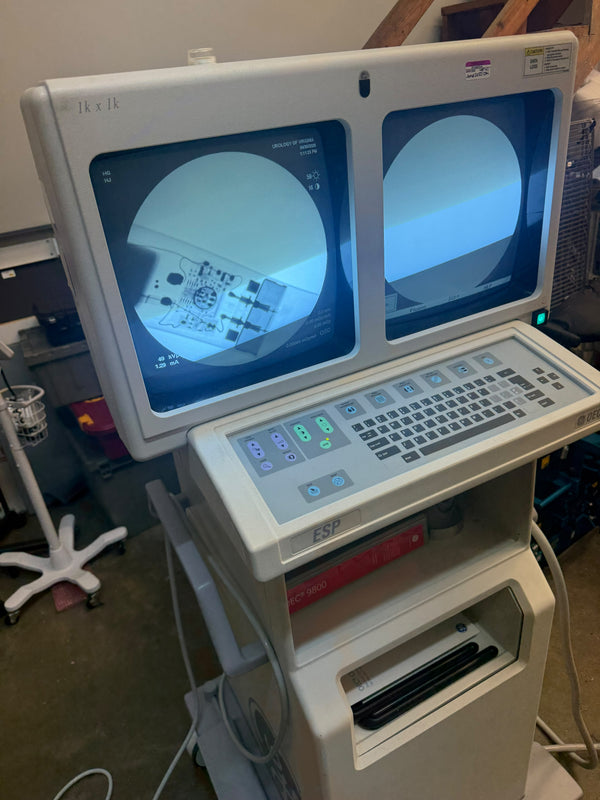

• Display System: Dual 1k x 1k High-Resolution Anti-Glare Medical Grade Monitors
• Generator: 15 kW High-Frequency Generator with Pulsed Fluoroscopy & Radiographic Modes

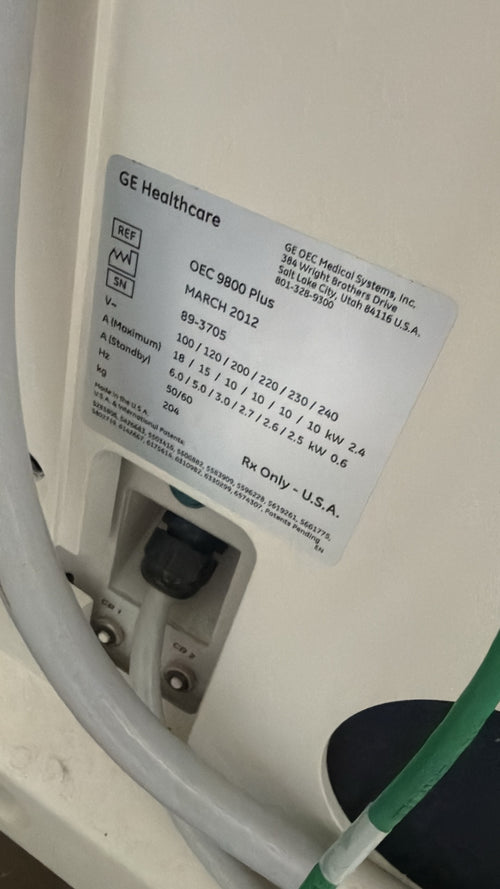

• Electrical Requirements: Universal Multi-Voltage: 100 / 120 / 200 / 220 / 230 / 240 V~ (50/60 Hz, Single Phase)
• Physical Weight: Workstation ~204 kg (450 lbs) | C-Arm Gantry ~310 kg (680 lbs)

Condition & Quality Inspection

• Condition: Used – Powers On / Functional (Sold AS-IS)
• Imaging Quality: Calibrated and verified sharp fluoroscopic display across both 1k x 1k workstation monitors.
• Mechanical Articulation: Orbital rotation, motorized vertical elevation, wig-wag, and horizontal travel operate smoothly with solid mechanical locking.
• Cosmetic Integrity: Exceptionally clean original white casing, well-maintained bumpers, and smooth-rolling medical-grade casters.
• Controls: Responsive alphanumeric membrane keyboard, image processing controls (edge enhancement, zoom, invert, negate), and C-arm console digital readouts (kVp / mA) fully operational.

What's Included in the Complete System

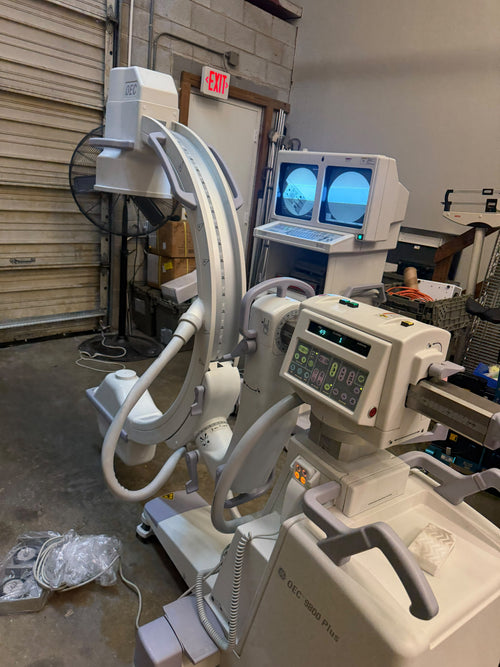

• 2012 GE OEC 9800 Plus Articulated Mobile C-Arm Gantry (SN: 89-3705)
• GE OEC Dual 1k x 1k Anti-Glare Monitor Viewing & Processing Workstation Cart
• Heavy-Duty Wired Dual-Pedal Foot Switch
• Hand Exposure Control Switch with Cable
• Workstation-to-Gantry Interconnect System Cable
• Hospital-Grade AC Power Cable

Secure Freight Packaging & Fast Shipping

Due to the sensitive nature of high-end diagnostic imaging equipment, this system is custom-crated and palletized with shock-absorbing protection for safe nationwide LTL freight delivery. We provide full transit insurance, tracking, and optional white-glove inside delivery with liftgate assistance. Export shipping is also available worldwide.

Questions or need an official itemized quote for financing? Contact our clinical equipment team toll-free at (855) 234-7633 or visit Healthcare Collections for our full inventory.

What is Included:

Includes only what is pictured in the listing photographs. If an accessory, cable, probe, manual, or peripheral is not shown in the photos, it is not included.

Terms of Sale & Return Policy:

All items are sold used, power on tested, strictly AS-IS, with no warranty expressed or implied. All sales are final. No returns.

Freight and shipping available across the US and worldwide. For freight quotes or questions, please contact PT Medical Technologies toll-free at (855) 234-7633.
